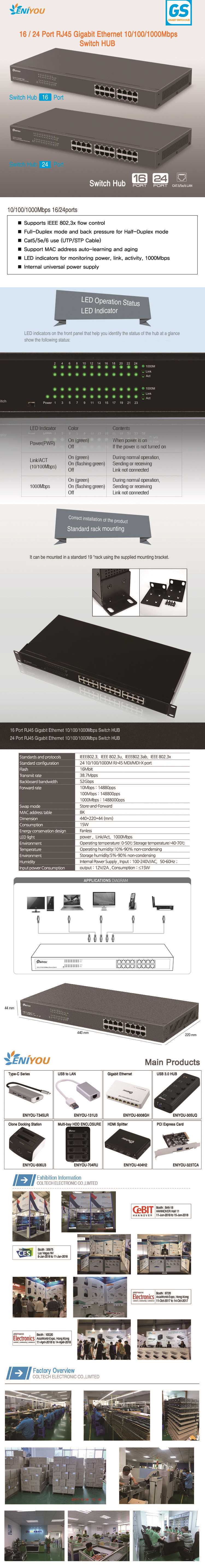

24 Port Rack-mounted 10/100/1000 Mbps Ethernet Switch Hub

Model：1024GS

Material：metal box

Color：Grey

Ports：RJ45 10/100/1000 Mbps

Input Interface：RJ45 10/100/1000 Mbps

Interface Type：RJ45 10/100/1000 Mbps

Product Dimension：440*220*44 MM

Single package size：534*308*94 MM

Single gross weight：3.15 KG/PCS

Package Type：Color Paper Box

Qty per carton：4PCS

G.Weight：12.6 KG

Carton Dimension：570*390*330 MM

Accessories：mounting bracket, screw, cable

Description

Model No.: 1024GS
Main IC: RTL8382L
Housing Material:Metal Box
Standards and protocols:IEEE802.3/IEEE 802.3u/IEEE802.3ab/IEEE 802.3x
Standard configuguration: 24 10/100/1000M RJ-45 MDI/MDI-X port
Flash: 16Mbit
Transmit rate:38.7Mpps
Backboard bandwidth:52Gbps
